3G SDI and HDMI x 1 3G SDI (Max resolution up to 1920×1080p@60fps), HDMI (Max resolution up to 1920×1080p@60fps)
Audio
Mic-in x 1, Line out x 1
Serial Port
RS232 x 1
Function Port
Reset Button x 1, Recovery Button x 1, Grounding pin x 1
DC-in
12V DC Jack
Front I/O
Power Button with Power LED indicator x 1
Wireless Communication
802.11a/b/g/n/ac/ax.w/BT5.2 (Optional)
Power
Medical adapter 12V 65W
Operating temperature
0°C ~ 35°C(32°F ~ 95°F)
Storage temperature
20°C ~ 60°C(-4°F ~ 140°F)

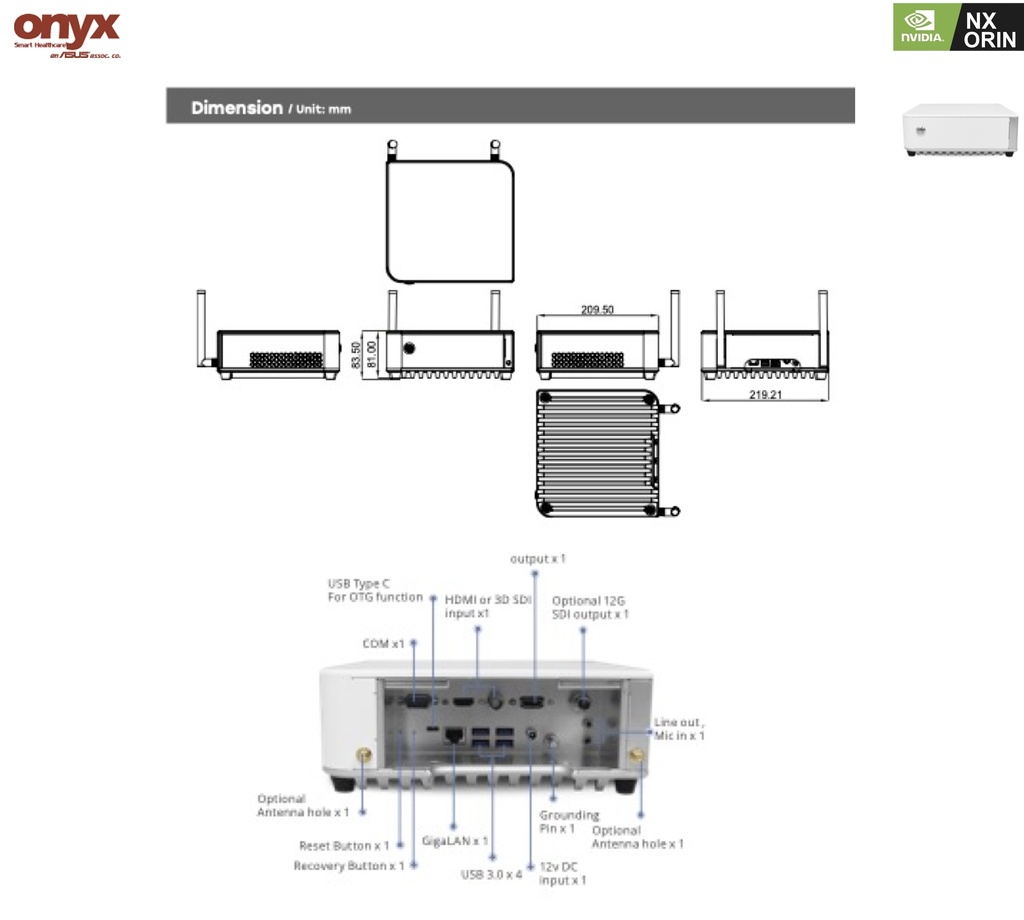

Dimension
219mm x 209mm x 83.5mm
Package Size
TBC
Gross Weight
TBC
Net Weight
TBC
Certifications
CE: EN 60601-1-2:2015(V4.0), EN 60601-1:2006/A1:2013/A12:2014 (V3.1) FCC: Part 18 Class B, Part 15 Class B, UL: ANSI/AAMI ES60601-1:2012 (V3.1) cUL: CAN/CSA-C22.2 No. 60601-1:2014 (V3.1)
